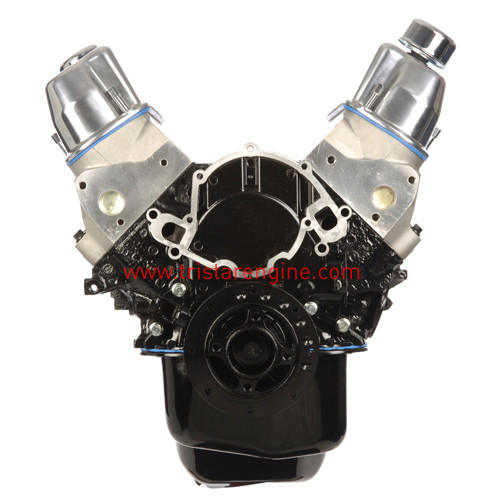

347 Ford Stroker Crate Engine (Dressed Longblock)

347 Ford Stroker Crate Engine (Dressed Longblock)
• High Performance Aluminum Heads
• 400 Horsepower
• 390 Torque
Online price:
$4,095.00


Call to check availability
Quick Overview:
This 347 Stroker Crate Engine is ideal for serious street performance. Our entry level 347 stroker Ford performance engines boast an honest 400 horsepower and 390 torque and run on premium pump gas. This part number is perfect to upgrade from your old 302. This Ford 347 stroker crate engine will give you the reliability you want for your street cruiser while still having the power you need.

Be sure to check out the optional items to customize your 347 stroker engine, from making it a roller setup to customizing the text on the valve covers.

Want to go bigger? Then check out our 331 Ford stroker 420 HP and 400 torque engine!
Contact us for questions
Select Product Options
You must complete each * required step below before proceeding to checkout

Small Block Ford Block Style

There are two options available for the block on your small block Ford crate engine:

  • •No clutch pivot on block [All automatic transmissions, most manual transmissions after 1974 and aftermarket manual transmissions]



  • •With clutch pivot on block [Most manual transmissions before 1974]



We're dedicated to building your dream engine, and building it right the first time. If your engine builder doesn't ask these questions they risk sending you an engine that you'll have to swap parts on, usually at your expense! Get the right build the first time, save money, and get higher quality parts by ordering your next Ford performance engine here at Tri Star Engines.

Have questions or need a block that isn't listed? Contact our performance engines specialists!

Small block Ford Oil Pan Style

For proper fitment we offer 3 oil pan options on our small block Ford crate engines:

  • Front sump oil pan (fits most Mustangs 1965-1973, other car apps to 1976, some truck applications to 1979)
    • The standard front sump pan does not have provision for a dipstick. If you select a factory reverse flow timing cover, you will need to select the Moroso front sump oil pan below.
  • Moroso front sump oil pan (has side kickouts and provision for a dipstick)
  • Rear sump (fox body style) oil pan

We're dedicated to building your dream engine, and building it right the first time. If your engine builder doesn't ask these questions they risk sending you an engine that you'll have to swap parts on, usually at your expense! Get the right build the first time, save money, and get higher quality parts by ordering your next Ford performance engine here at Tri Star Engines.

Small block Ford Timing Cover Style

To ensure proper fitment of your water pump and pulleys we need to know what timing cover to install on your crate engine. There are 3 options for timing covers:

  • Standard flow - This is by far the most common option. On this we also need to know which side your water pump inlet is on; drivers or passengers side.
  • Reverse flow, 1987-1997 truck style serpentine belt
  • Reverse flow, 1994-1995 Mustang style serpentine belt

NOTE:: The only timing cover with provision for a mechanical fuel pump is the standard flow cover. If you choose a reverse flow cover you will need to use an electric fuel pump.

If using an aftermarket serpentine belt system call the manufacturer and ask them which timing cover you should be using.

We're dedicated to building your dream engine, and building it right the first time. If your engine builder doesn't ask these questions they risk sending you an engine that you'll have to swap parts on, usually at your expense! Get the right build the first time, save money, and get higher quality parts by ordering your next Ford performance engine here at Tri Star Engines.

Have questions or need a timing cover that isn't listed? Contact our performance engines specialists!

Standard flow timing cover
(For all V-belt pulley systems and most aftermarket serpentine belt systems)



Notice the direction of the ports for the water pump. On these timing covers we also need to know what side the inlet for your water pump is on (ref. Image 2), which allows us to install the timing pointer on the correct side so it is visible.

Reverse flow timing cover
(For most traditional serpentine belts in the years listed)



+$200.00

Custom Engraved Valve Covers

Add your own personalized message on the polished aluminum valve covers.

See below for some of our previous work:

Custom Valve Cover Example Custom Valve Cover Example

Custom Valve Cover Example Custom Valve Cover Example

Maximum number of characters: 20

* Required Fields

$4,095.00
Online Price: $4,095.00
Details
The Dressed Longblock build comes with timing cover, oil pan, harmonic balancer and polished Tri Star valve covers installed. This build allows you to put your own intake, carburetor and distributor on, depending on preference.

This 347 Stroker Crate Engine is recommended for street use and runs on premium pump gas with a compression ratio of approximately 9.5:1. The 347 stroker motor is the ideal engine for upgrading your old 302.

Tri Star Performance lets you customize your engine build to what you really want. Look through the variety of options offered for each performance engine. Add what you want to make it your own, even add your own customized text to the valve covers!
Specs
Part Number
P3124-5HP
Block
Stress relieved block is completely CNC machined in our state of the art CNC machining center. The block is fully align honed and torque plate honed, then assembled with brass frost plugs and pressure tested.
Short Block Features
• Scat cast steel crank
• 4340 Forged connecting rods with ARP cap screws
• HP Hypereutectic pistons
• Moly rings
• Clevite main and rod bearings
• True roller double roller timing set
• Melling oil pump
• Howards hydraulic flat tappet camshaft (roller optional)
Camshaft Advertised Duration
277° Intake
289° Exhaust
Camshaft Duration @ .050"
223° Intake
235° Exhaust
Camshaft Lift
.496" Intake
.520" Exhaust
Heads
• Tri Star HP aluminum heads
• 2.02 stainless intake valves
• 1.60 stainless exhaust valves
• HP valve springs
• Roller rocker arms
• Hardened pushrods
Additional Parts Included
• Tri Star Polished aluminum valve covers
• Aluminum timing cover
• HD harmonic balancer
• Stamped steel oil pan
• Melling oil pump and screen
Horsepower
400
Torque
390
Warranty
2 years, unlimited mileage
