Select Product Options

You must complete each * required step below before proceeding to checkout

*Select paint color:

-- Please Select --Black Ford blue (dark) Primer gray

*Select your block:

Small Block Ford Block Style

There are two options available for the block on your small block Ford crate engine:

• •No clutch pivot on block [All automatic transmissions, most manual transmissions after 1974 and aftermarket manual transmissions]



• •With clutch pivot on block [Most manual transmissions before 1974]



We're dedicated to building your dream engine, and building it right the first time. If your engine builder doesn't ask these questions they risk sending you an engine that you'll have to swap parts on, usually at your expense! Get the right build the first time, save money, and get higher quality parts by ordering your next Ford performance engine here at Tri Star Engines.

Have questions or need a block that isn't listed? Contact our performance engines specialists!

-- Please Select --Block without clutch pivot provision (Auto trans & most 1974+ and aftermarket manual trans) Block w/ clutch pivot provision (Call for Availability, Core is Limited) +$500.00

*Select your oil pan:

Small block Ford Oil Pan Style

For proper fitment we offer 3 oil pan options on our small block Ford crate engines:

• Front sump oil pan (fits most Mustangs 1965-1973, other car apps to 1976, some truck applications to 1979)
  • The standard front sump pan does not have provision for a dipstick. If you select a factory reverse flow timing cover, you will need to select the Moroso front sump oil pan below.
• Moroso front sump oil pan (has side kickouts and provision for a dipstick)
• Rear sump (fox body style) oil pan

We're dedicated to building your dream engine, and building it right the first time. If your engine builder doesn't ask these questions they risk sending you an engine that you'll have to swap parts on, usually at your expense! Get the right build the first time, save money, and get higher quality parts by ordering your next Ford performance engine here at Tri Star Engines.

-- Please Select --Front sump pan Moroso front sump pan with dipstick provision +$200.00Rear sump (fox body) pan +$100.00

*Select timing cover:

Small block Ford Timing Cover Style

To ensure proper fitment of your water pump and pulleys we need to know what timing cover to install on your crate engine. There are 3 options for timing covers:

• Standard flow - This is by far the most common option. On this we also need to know which side your water pump inlet is on; drivers or passengers side.
• Reverse flow, 1987-1997 truck style serpentine belt
• Reverse flow, 1994-1995 Mustang style serpentine belt

NOTE:: The only timing cover with provision for a mechanical fuel pump is the standard flow cover. If you choose a reverse flow cover you will need to use an electric fuel pump.

If using an aftermarket serpentine belt system call the manufacturer and ask them which timing cover you should be using.

We're dedicated to building your dream engine, and building it right the first time. If your engine builder doesn't ask these questions they risk sending you an engine that you'll have to swap parts on, usually at your expense! Get the right build the first time, save money, and get higher quality parts by ordering your next Ford performance engine here at Tri Star Engines.

Have questions or need a timing cover that isn't listed? Contact our performance engines specialists!

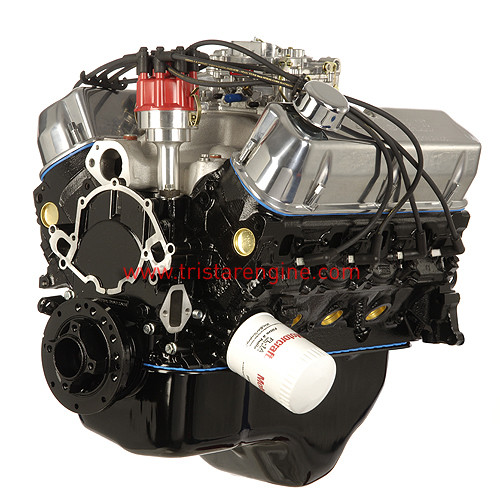

Standard flow timing cover
(For all V-belt pulley systems and most aftermarket serpentine belt systems)



Notice the direction of the ports for the water pump. On these timing covers we also need to know what side the inlet for your water pump is on (ref. Image 2), which allows us to install the timing pointer on the correct side so it is visible.

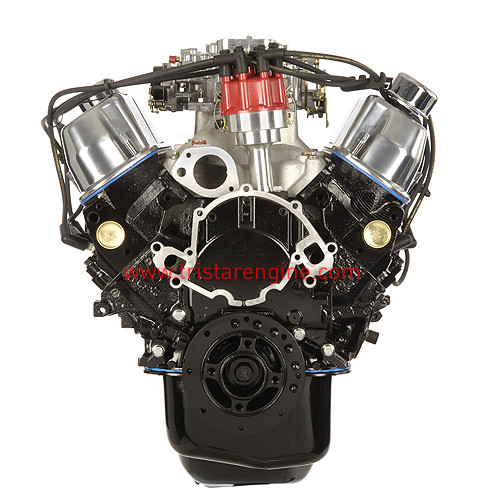

Reverse flow timing cover
(For most traditional serpentine belts in the years listed)



-- Please Select --Standard flow cover with driver side water pump inlet Standard flow cover with passenger side water pump inlet Reverse flow 1987-1997 truck style cover Reverse flow 1994-1995 Mustang style cover

*Fuel Delivery Type

-- Please Select --Quick Fuel Carburetor (Included) Upgrade to Holley Sniper EFI Self-Tuning Fuel Injection System +$800.00Upgrade to Holley Sniper EFI Self-Tuning Fuel Injection System (WITH inline fuel pump) +$1,059.95

Add water pump:

-- Please Select --Add Standard Flow Edelbrock aluminum water pump in satin finish +$215.00Add Standard Flow Edelbrock aluminum water pump in polished finish +$295.00Add Standard Flow Edelbrock aluminum water pump in black finish +$248.00

Add other parts:

• Add MSD Ignition Coil and Box +$325.00
• Add Powermaster starter # 9603 (not installed) +$200.00

Optional items:

• Add fuel pump and lines (NOT installed) +$150.00

* Required Fields
